Thermaltake AX500 Full Tower Chassis

Compatible with Hidden-Connector Motherboards

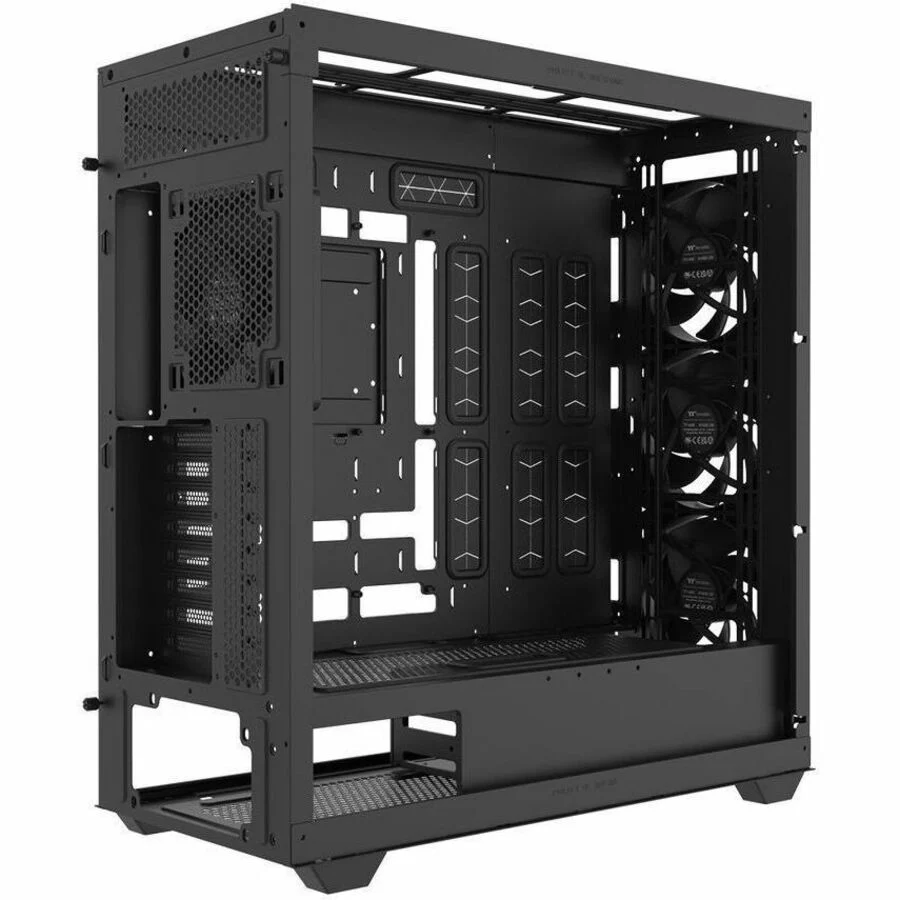

The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

Compatible with hidden-connector motherboards:

ASUS BTF Series

MSI PROJECT ZERO Series

GIGABYTE PROJECT STEALTH Series

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

Note: The top fan + radiator thickness limit is 82mm

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

Superior Cooling Support

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

GPU Holder

The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives.

Drive Plate

• 1 x 3.5" HDD or


• 2 x 2.5" SSD

Drive Cages

• 4 x 3.5" HDD or


• 4 x 2.5" SSD

Tidy Cable Management

The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.

Superior Hardware Support

The AX500 Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.

Dimensions

550 248 548mm

CPU Cooler

Max height 185mm

Motherboard

6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB

PSU

Max length 200mm

GPU

Length limitation 460mm

Fan Capacity

• 120mm


• 140mm

Radiator Capacity

• 120mm


• 140mm


• 240mm


• 280mm


• 360mm


• 420mm

Perfect Dust Protection

The AX500 Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

• Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box


• 11 bays to add innumerable components and experience a peak computing performance


• The full-tower structure offers a better airflow and ample space to store hardware
