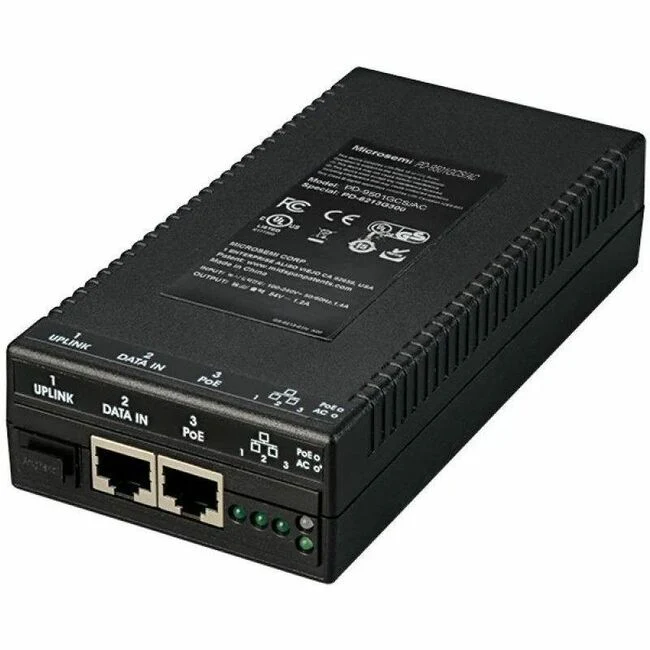

Microchip PD-9501GCS/AC Transceiver/Media Converter with power cord
Microchip's PD-9501GCS is a media converter with PoE functionality that can power up to 60W. It contains three ports that can be active simultaneously and you can input data via an SFP module or RJ45 port.

This media converter offers a unique solution to power long-range installations that receive data input through fiber. You can use standard SFP modules (SM or MM) with this device.

The PD-9501GCS supports IEEE 802.3bt type 3 end devices and provides PoE after detection. The PoE port provides the power level required by the end device to offer a safe solution for all types of applications including IEE 802.3af-compliant loads and up to four pairs of IEEE 802.3btcompliant loads.

• IEEE 802.bt Type 3 compliant


• IEEE 802.3af/at backward compatible


• Output power of 60W over 4-pairs is guaranteed


• Supports 10/100/1000Base-T applications


• Plug-and-play installation


• Safe: low-power devices receive only the power they need


• Automatic detection and protection of non-standard Ethernet terminals


• Compact design fits easily in WLAN access point and IP camera installations
