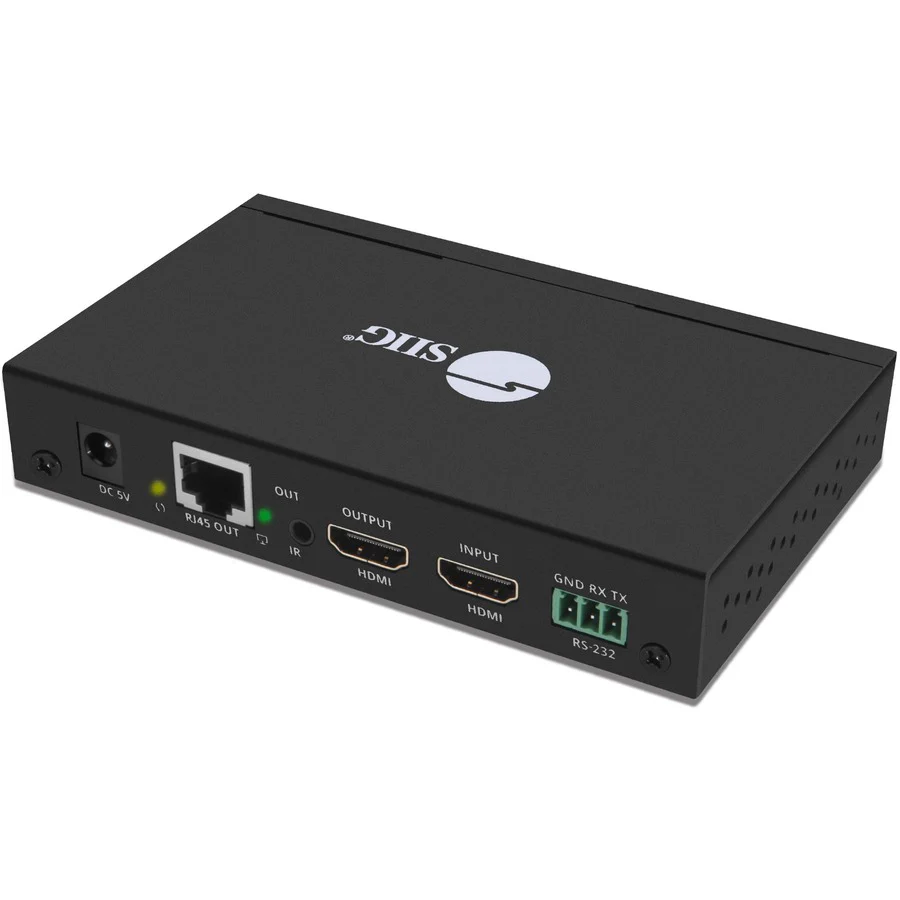

Receives high definition 1080p HDMI signals from a source device and extends the signal through economical Cat5e/6 cable.
Features

• Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Decoder (RX) (part # CE-H23C11-S2) sold separately

• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately

• Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location

• Supports computer control software to select and switch between source devices (Matrix only)

• Supports HDbit-T protocol with H.264 compression over IP

• HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

• RS-232 pass-through connection to control RS-232 enabled devices at either direction

• Video Extender Transmitter is all you need for dependable and productive audio/video transmission


• 480p supported video mode for pleasurable viewing and dependable usage


• 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity


• HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability


• HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency


• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference


• The CE-H23B11-S2 video extender transmitter provides plenty of freedom with wired connectivity


• 1 input devices supported for maximum feasibility and usage convenience


• 393.70 ft maximum operating distance for feasible operation and optimal coverage


• Full HD graphics mode provides optimal video output with remarkable picture clarity
